Tegola Canadese Vivo Roof system green roof: nature and sustainability
In over forty years of activity, Tegola Canadese has completed some of the most outstanding roofs in the world, taking advantage of its extensive experience in waterproofing and thermal insulation. Nowadays, the green roof systems are a further step towards full living comfort. The beauty of green roofs and terraces has a positive effect on living comfort and the quality of life, in addition to several environmental and functional advantages for the individual buildings and metropolitan areas. Tegola Canadese has developed particularly adaptable green roofing systems, conceived to the smallest detail to adapt to the various needs of all kinds of urban and rural environments.

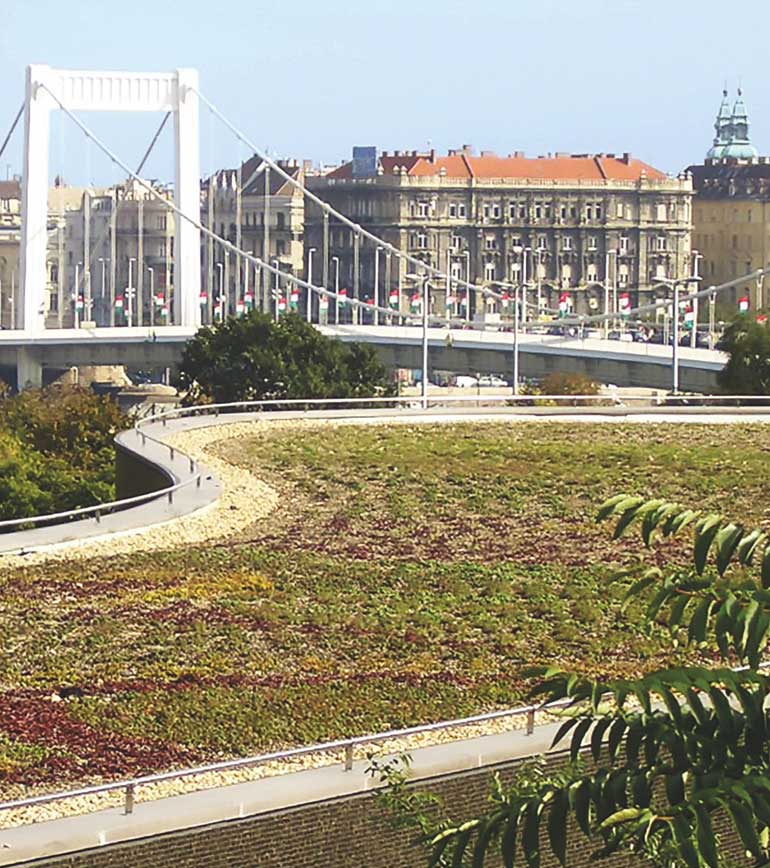

Bringing the green to the city landscape with solutions suitable for all situations
Green roofs not only contribute to changing the looks of city centres, but also and foremost to elevating our urban landscapes to high sustainability levels. Bringing the green to our city centres, as part of the daily life of their inhabitants, is the object that Tegola Canadese wants to fulfil with its system, which allows designers to create both small and large green spaces. Meeting the living needs of those who want to follow a “green” life style through a Tegola Canadese green roof means bringing nature in, integrating it with the living elements of the home, and changing the perception of a specific space.
Green roofing systems
Tegola Canadese Vivo Roof systems fully meet the technical provisions of the UNI 11235 standard

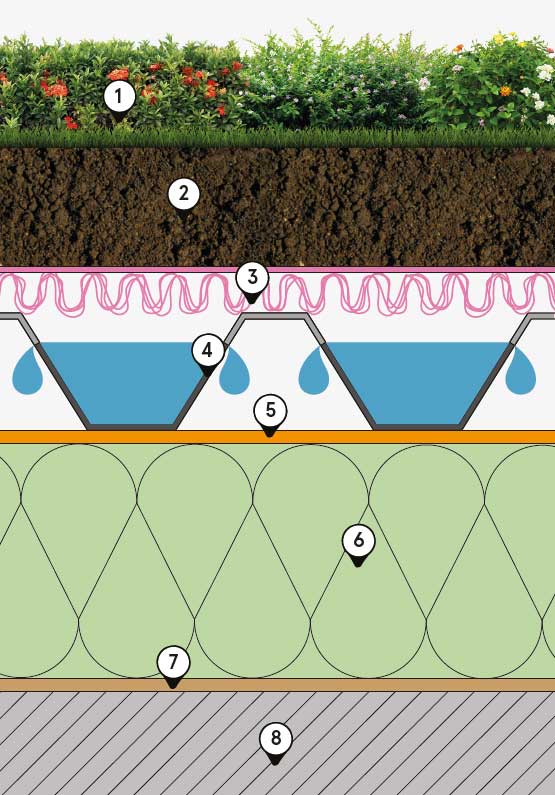

VIVO ROOF S-TPO
INVERTED ROOF
1. Vegetation
2. Soil
3. TEFOND 3D TG: filtration and aeration
4. MAXISTUD F: water retention and drainage
5. TEGOTEX: separation and protection
6. STYRODUR® 4000 CS: XPS thermal insulation
7. SAFETY TPO: root-resistant waterproofing and vapour barrier
8. Roof structure

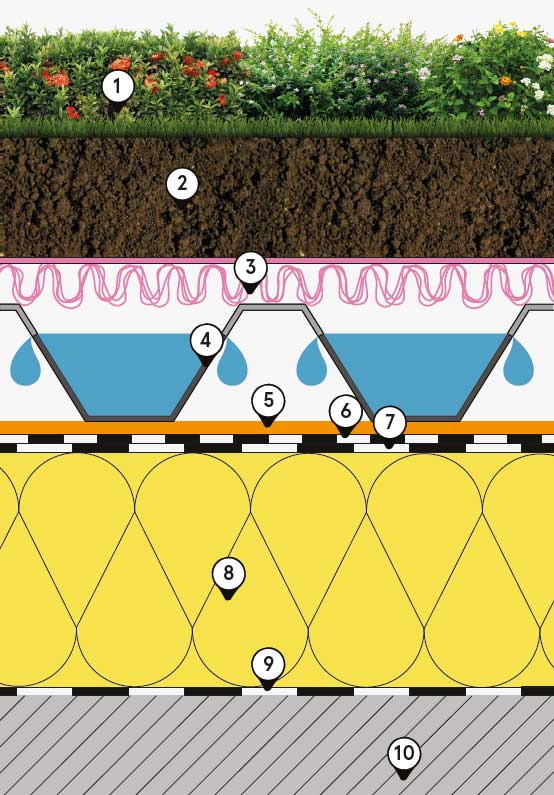

VIVO ROOF PIR-MB
ABOVE INSULATION WATERPROOFING
1. Vegetation
2. Soil
3. TEFOND 3D TG: filtration and aeration
4. MAXISTUD F: water retention and drainage
5. TEGOTEX: separation and protection
6. SAFETY AR FLL 4mm: root-resistant waterproofing sheath
7. SAFETY PLAST EPP 4 mm: waterproofing sheath
8. TEGOTHERM POLYISO SUPER: thermal insulation λ= 0.023
9. SAFETY ALU 3 mm: vapour barrier sheath
10. Roof structure

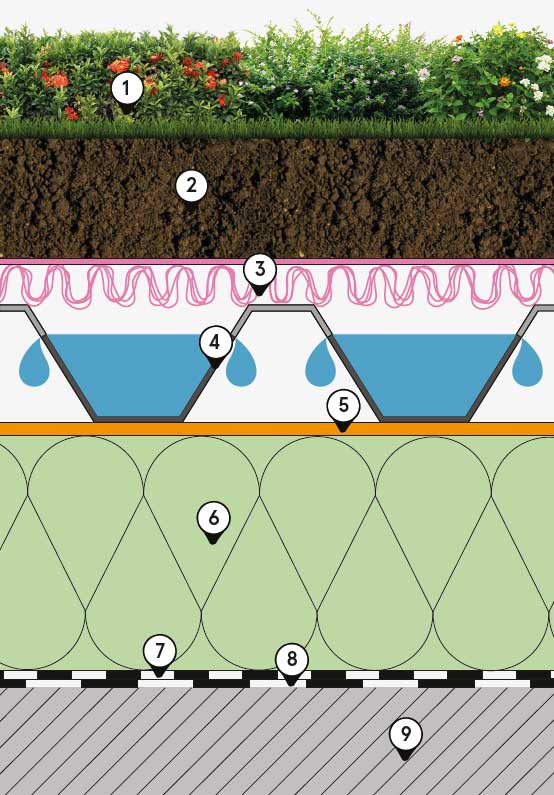

VIVO ROOF S-MB
INVERTED ROOF
1. Vegetation
2. Soil
3. TEFOND 3D TG: filtration and aeration
4. MAXISTUD F: water retention and drainage
5. TEGOTEX: separation and protection
6. STYRODUR® 4000 CS: XPS thermal insulation
7. SAFETY AR FLL 4 mm: waterproofing sheath root resistant
8. SAFETY ALU 3 mm: vapour barrier sheath
9. Roof structure

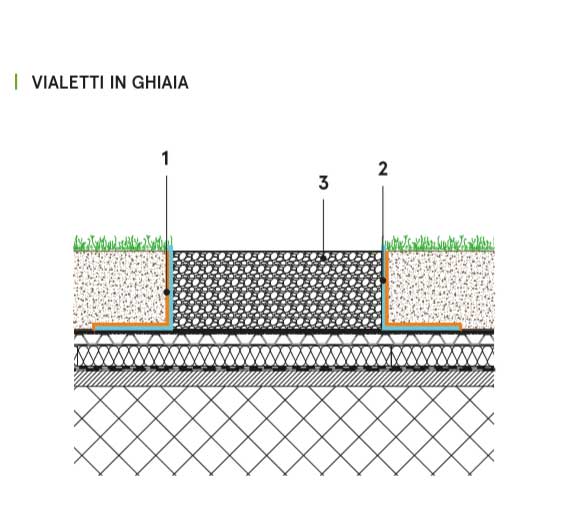

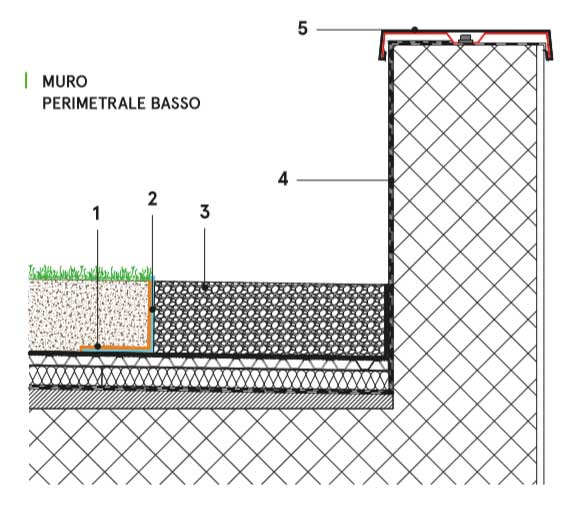

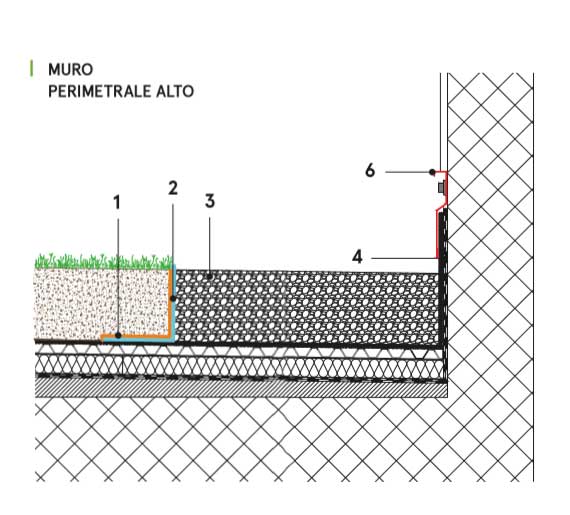

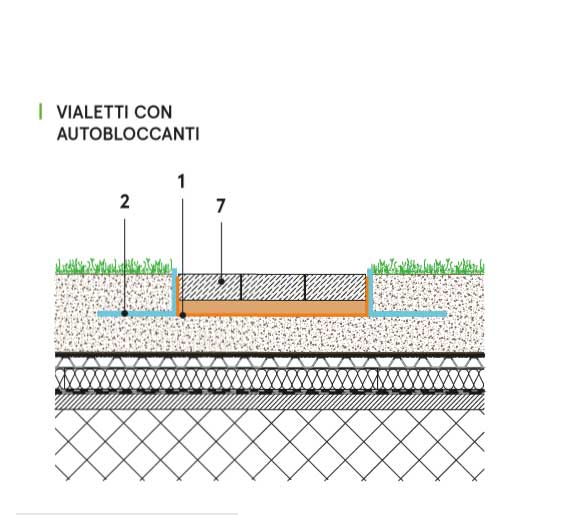

Finish details
The Tegola Canadese Vivo Roof system was designed following quality preconditions promoting the new building culture of minimum environmental impact through energy saving, limited water requirements and long life. Each and every detail is taken care of, ensuring compliance with the regulations, making available all the accessories to ensure that all technical issues are dealt with in a professional manner.
1. Tegotex
2. Vivo Roof Profile
3. Gravel
4. Root-resistant waterproofing
5. Flashing
6. Vertical joining profile
7. External floor

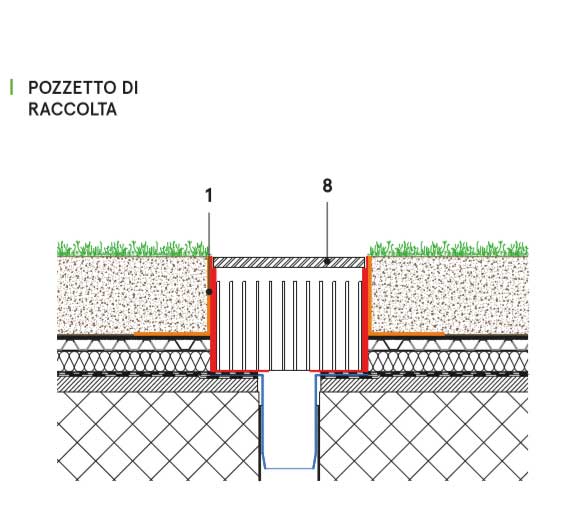

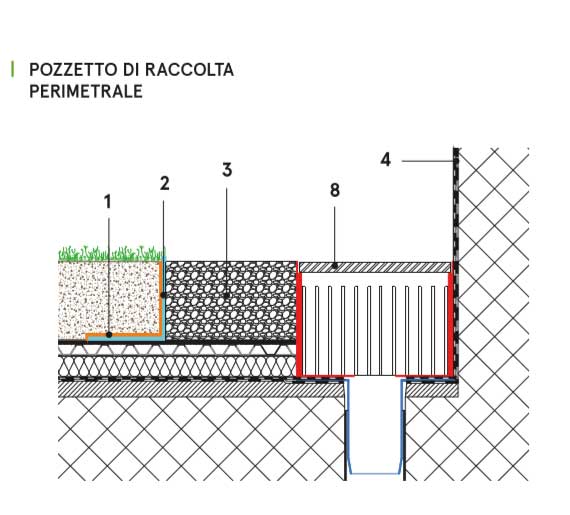

8. Inspectionable water collection sump pit
Tegola Vivo Roof system materials
TEFOND 3D TG
Drainage geocomposite consisting of a monofilament drainage core with high compression strength thermally bonded to a filter geotextile. With its total mass per unit area of 700 g/m2, it delivers the aeration required between the soil and water storage layer.
MAXISTUD F
20 mm high density polyethylene (HDPE) studded membrane with high compression strength (130 kN/m2) and 5.8 l/m2 approximate water retention capacity. The presence of top holes ensures vertical drainage of any excess water, with horizontal drainage capacity of 2.50 l/(m*s).
TEGOTEX
300 g/m2 non-woven geotextile obtained from white recycled polyester fibres: provides separation between the water storage and drainage layer and the waterproofing, ensuring a further protection to the latter.
SAFETY TPO
Synthetic TPO modified polyolefin membrane with high root penetration resistance. Thickness 1.80 mm and ≥195N laceration resistance, with great resistance to root penetration.
SAFETY
Bitumen sheath:
SAFETY PLAST EPP 4 mm.
SAFETY ALU 3 mm.
SAFETY AR FLL 4 mm.
SAFETY PLAST EPP 4 mm.
SAFETY ALU 3 mm.
SAFETY AR FLL 4 mm.
TEGOTHERM POLYISO SUPER
Patented PIR foam board with high thermal insulation characteristics: the low λD=0.023 W/mK thermal conductivity value is possible thanks to the new gas-proof multilayer coating, which keeps the thermal insulation performance levels unchanged in the long term
STYRODUR® 4000CS
Extruded polystyrene insulating board with great insulating properties and high compression strength, guaranteed for up to 50 years. Styrodur® 4000 CS guarantees dimensional stability with temperature and humidity changes and can withstand extended exposure to water

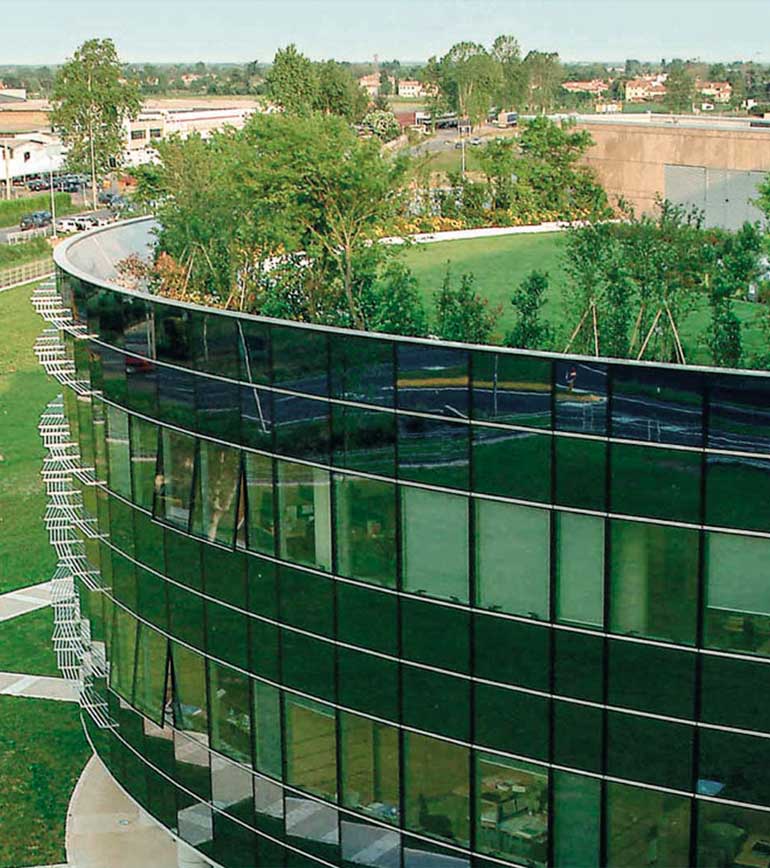

Create a green hanging garden
- Quality of life also means living in spaces that are not only comfortable, but that can provide an environment as natural and alive as possible, also in the city.
- A green roofing system allows to expand the living space, making the most of areas that before were out of reach, and to transform the roof into an actual garden, an area that is alive and that can be used in many different ways, where beauty, well-being and joy of living take centre stage.
- Walking barefoot on the grass has a great beneficial effect on the mood. But the green space can also be used to grow and harvest early produce, herbs such as lavender, sage, bay, oregano, basil coriander, goji berries and so on.
- Even a very small green space in the city can have great decorative value. Moreover: thanks to the photosynthesis process, bushes and medium trees can produce oxygen, contributing to a better air quality.
- More “green” in the city will make buildings alive, with surfaces that grow and change with the seasons, at the same time giving back to the earth as greenery the same amount of soil occupied by the building.
