Thermo Reflex

Reflective multi-ply thermal insulation

Reflective multi-ply thermal insulation

Thermo Reflex is a reflective multi-ply thermal insulation material suitable for application on roofs, lofts, walls and floors. It’s the only type of thermal insulation that offers thermal performance levels measured at the installation site, differently from other insulations, for which performance levels are measured at the lab.

Heat transmission

In physics, heat is a form of energy that moves between two bodies, or two parts of the same body, that are in different thermal conditions. Heat is transiting energy that always flows from the higher temperature to the lower temperature point, until thermal balance is achieved.
Heat transmission can occur in three different ways:

Conduction

Direct molecular contact, from the areas with the highest temperature to those with the lowest temperature. A typical example is the transmission of heat along an iron bar in contact on one end with a heat source: the whole bar will soon become hot due to transmission by conduction.

Convection

This process occurs in liquid or gaseous environments, in order to bring two systems initially at different temperatures to a balanced condition. An example is the hot air produced by fan heaters, which travels to the top, causing the cooler air to move lower in the room.

Radiation

Heat transmission without direct contact, through electromagnetic waves produced by a body based on its temperature and emission capability, mainly from the body with the highest temperature, to the body with the lower temperature. An example of this is when we are near a fire: although there is no direct contact, we can still feel the heat.

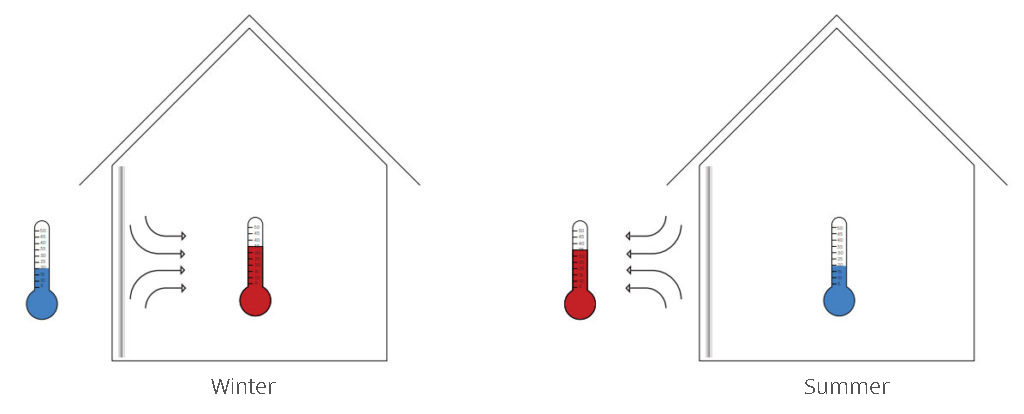

Thermo Reflex working principle

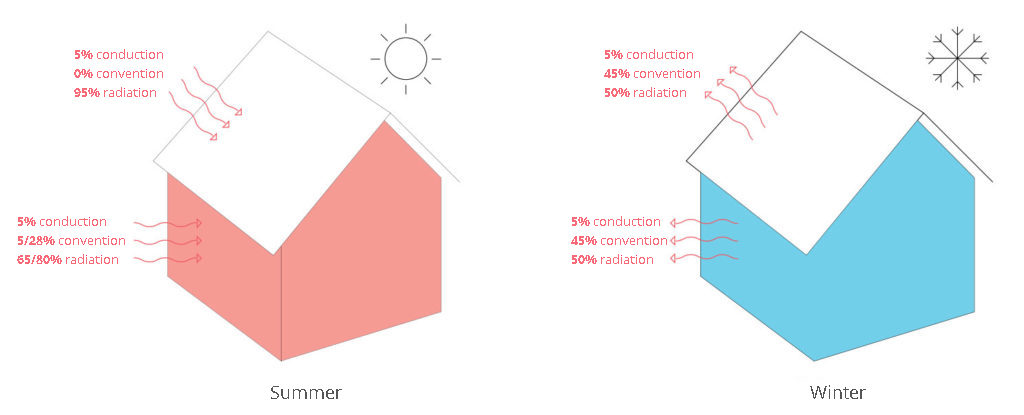

During the year, most of the heat transmission from (winter) and to (summer) a building is through radiation. Thanks to its multi-ply structure and the composition of its metallic polyester, polyethylene and synthetic batting sheets, Thermo Reflex is capable of almost completely stopping these transfers by radiation through the heat wave reflection principle, therefore significantly increasing the level of comfort inside all the rooms of the building.

Advantages

EASY INSTALLATION

As well as clean and quick
Light weight and ease of application are keywords during site installation works. This is why Thermo Reflex was conceived to be light and safe, ensuring quick and problem-free installation.

NON-ALLERGENIC

Safe installation
Thermo Reflex was designed to be non-allergenic and non-toxic, to ensure safety during installation, without the need for special personal protective equipment (PPE).

ASEPTIC

Health for the installer and the end user
Thermo Reflex is made of aseptic material, therefore free from harmful micro-organisms, preserving the health of installers and end users.

GREAT INSULATION PROPERTIES WITH REDUCED THICKNESS

Larger living space
Thermo Reflex guarantees great insulation properties with very reduced thicknesses. This avoids a reduction of living spaces, whilst still ensuring top performance levels.

LIGHT TO HANDLE

Safety first and foremost
During installation, the safety of workers must always be considered. With its specifically conceived light and easy to handle design, which ensures higher site safety during the works, Thermo Reflex fully meets such requirement.

SOUND INSULATION SYSTEM COMPLETION

A multi-ply material
Its multi-ply structure and the polyester, polyethylene and synthetic batting sheets can stop not only heat dispersion, but also sound waves, providing great sound insulation.

THERMO REFLEX – XL 50

Multi-ply thermal insulation consisting of 13 elements. Used for the insulation of roofs from the outside, non-habitable or recovered floors, this solution is also suitable for the insulation of walls from the inside or the outside.

ROLL DIMENSION (M) THICKNESS (MM) WEIGHT (G/M2) THERMAL RESISTANCE RD=M2K/W
ISO 9869 EN 1612
10,35×1,45 50 750 5,8 da 1,5 a 3,48

Composition

  • 2 films in metallic polyester with low emission capability
  • 6 layers of polyester batting – fire resistant
  • 5 films in metallic polyester

THERMO REFLEX – XL 70

Multi-ply insulation consisting of 17 elements, suitable for several applications: its high resistance makes it possible to insulate roofs from the outside, but also to insulate the floor (converted or disposable) and the walls from the inside or the outside.

ROLL DIMENSION (M) THICKNESS (MM) WEIGHT (G/M2) THERMAL RESISTANCE RD=M2K/W
ISO 9869 EN 1612
6,67×1,5 70 944 6,3 da 2,16 a 4,78

Composition

  • 2 films in metallic polyester with low emission capability
  • 8 layers of polyester batting – fire resistant
  • 7 films in metallic polyester.

THERMO REFLEX – TECH PRO

Semi-thick and multi-ply reflecting insulation with linen wool, cotton and an internal built-in breathable screen. External roof insulation solution.

ROLL DIMENSION
(m)
THICKNESS
(mm)
WEIGHT
(g/m2)
THERMAL RESISTANCE
Rd=m2K/W
      ISO 9869 EN 1612
10,7×1,5 42 1.487 3,28

Composition

  • 1 HVP low emission membrane (high vapour permeability)
  • 2 reinforced perforated metallic films
  • 4 layers of polyester batting
  • 1 cotton layer
  • 1 linen wool layer

THERMO REFLEX – AIR FLEX

Airflex is a rigid insulation with high compression strength.
This 5-element multi-ply insulation is fire resistant and belongs to Euroclass B, s1-d0.

ROLL DIMENSION
(m)
THICKNESS
(mm)
WEIGHT
(g/m2)
THERMAL RESISTANCE
Rd=m2K/W
      ISO 9869 EN 1612
12,5×1,2 10 540 3,8 da 0,25 a 3,18

Composition

  • 2 99% pure aluminium sheets, thickness 30μ
  • 1 layer of fire resistant PE foam, 3 mm
  • 2 bubble films of fire resistant PE, 150μ
  • Adhesive strip

THERMO REFLEX – PRO DUO

Semi-rigid, thin, multi-function multi-ply insulation.

ROLL DIMENSION
(m)
THICKNESS
(mm)
WEIGHT
(g/m2)
THERMAL RESISTANCE
Rd=m2K/W
      ISO 9869 EN 1612
12,5×1,2 3 150

Composition

  • 2 films in metallic polyester
  • 1 bubble film
